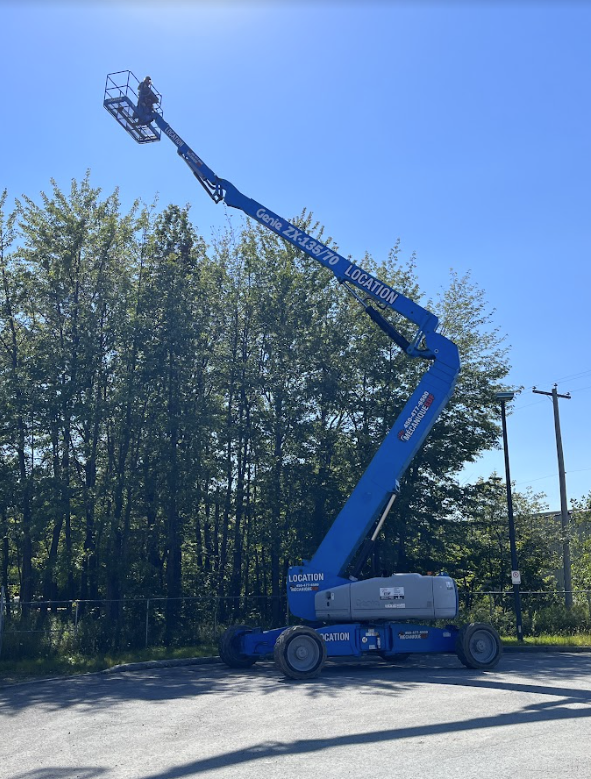

Genie ZX-135/70 135' Fuel Articulated Boom lift
Year 2014
Serial number: ZX13514-2364
Number of hours: 3400
Certification: CSA
Specifications
Brand | GENIE |
Engine Model | Deutz Diesel TD 2011 L04i 4 cylinders turbo diesel, 55 kW (74 ch) |
Type of energy | Diesel |
Weight | 21,09 t | 46499 lb |
Tires | 445/65 D22,5 |
Hydraulic tank capacity | 246,1 L |
Diesel tank capacity | 151,4 L |
Auxiliary Power unit | 12V CC |
Type of rotation | continuous |
Gradeability | 45% |
Driving speed (stowed) | 4,8 km/h |
Ground clearance - center | 0.5 |
Maximum working height | 43,15 m | 141,57' |
Driving speed (high) | 1,1 km/h |
Turntable rotation | 360° |
Maximum platform height | 41,15 m | 135,01' |
Max Horizontal Reach Extended Riser | 18,03 m | 59,15' |
Max Horizontal Reach Riser Retracted | 21,26 m | 69,75' |
Platform length | 0,91 m | 2,99' |
Height-stowed | 3,07 m | 10,07' |
Length-stowed | 12,93 m | 42,42' |
Width(axles extended/retracted) | 3,94 m / 2,46 m | 12,9' / 8,07' |
Wheelbase (extended/retracted axles) | 4,11 m / 4,72 m | 13,48' / 15,49' |
Lifting capacity | 0,27 t | 599 lb |
Platform rotation | 160° |
Boom vertical rotation | 110° |
Turning Radius - Inside (Extended/Retracted Axles) | 2,29 / 5,51 m | 7,51 / 18,07' |
Certification | CSA |
Platform width | 2.44 m | 8.01' |
