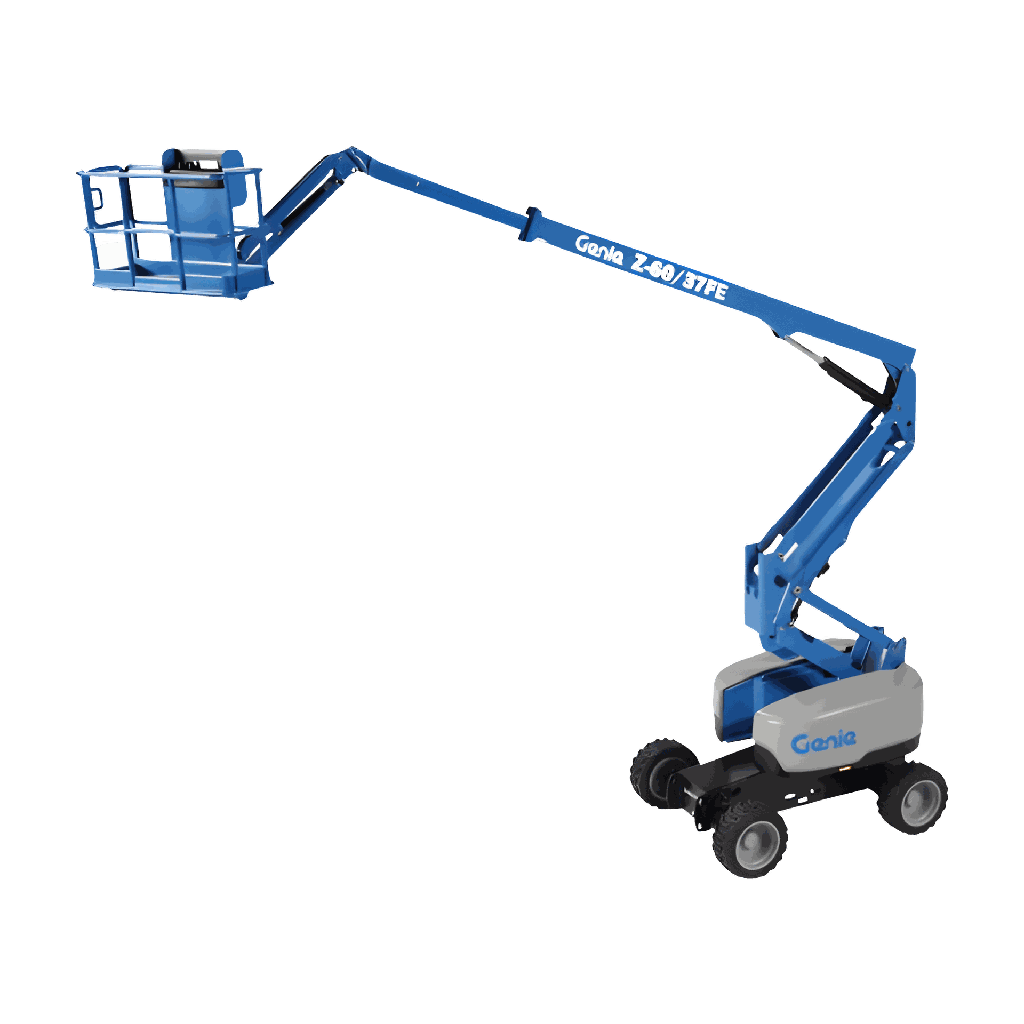

Genie Z60/34 60' Diesel Articulated Boom lift

• Brand GENIE
• Type of energy
  • Electric
• Weight
  • 7,53 t | 16600 lb
• Turning radius - outside
  • 5,69 m | 18,67'
• Tires
  • 355/55 D625
• Hydraulic tank capacity
  • 68,14L
• Turning radius - inside
  • 2,51 m | 8,23'
• Auxiliary Power unit
  • 12V CC
• Ground clearance
  • 0,33 m | 1,08'
• Height - stowed
  • 2,54 m | 8,33'
• Wheelbase
  • 2,49 m | 8,17'
• Gradeability
  • 45%
• Turntable rotation 355° non-continuous
• Drive Speed - Stowed Position
  • 6,44 km/h
• Power source
  • 48 V DC (8 batteries 6V, capacité 225 Ah) 390 Ah (norme FLA en DC)
• Width
  • 2,49 m | 8,17'
• Maximum working height
  • 20,16 m | 66,14'
• Charge capacity
  • 0,23 t | 500 lb
• Platform rotation
  • 160°
• Travel Speed - Extended
  • 1,09 km/h
• Max platform height
  • 18,16 m | 59,58'
• Platform length
  • 0,91 m / 0,76 m | 2,99' / 2,49'
• Max Articulation Height
  • 7,39 m | 24,25'
• Platform Width
  • 2,44 m / 1,83 m | 8,01' / 6,00'
• Horizontal reach
  • 11,15 m | 36,58'
