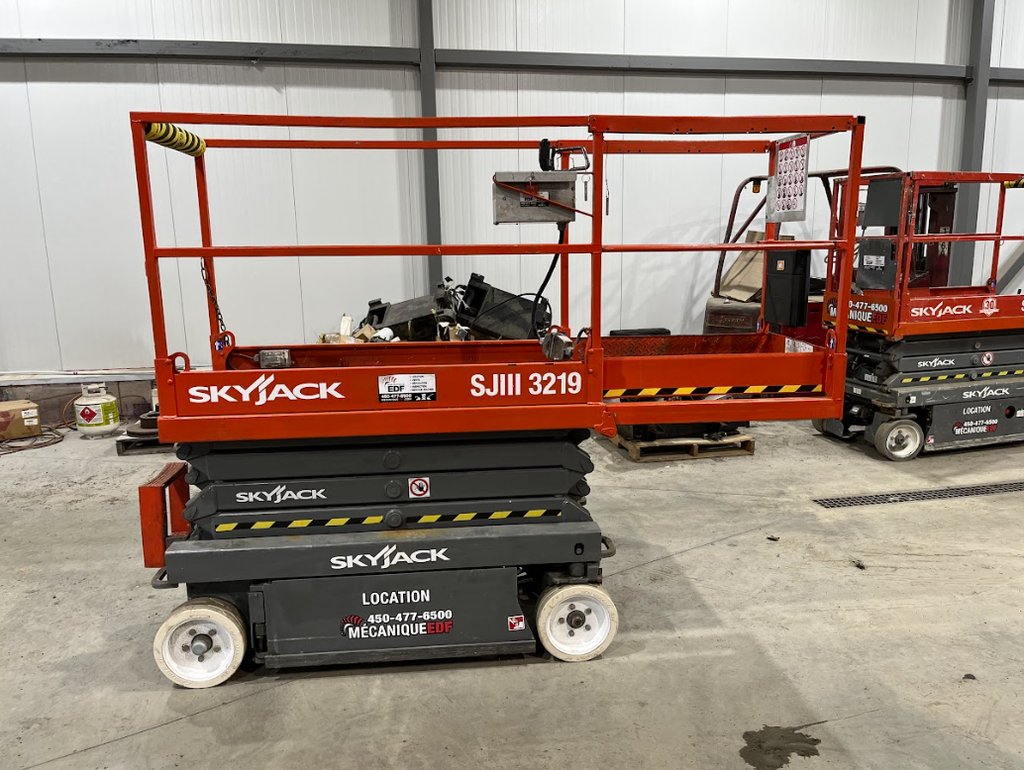

Skyjack SJIII 3219 19' electric scissors lift platform

http://localhost:8069/web/image/product.template/2977/image_1920?unique=d6264f0

8,500.00 $ 8500.0 CAD 8,500.00 $

8,500.00 $

Not Available For Sale

  • Brand
  • Driving at maximum height
  • Working height
  • Platform height, lowered
  • Overall Width
  • Platform width (inside dimension)
  • Platform length (inside dimension)
  • Gradeability
  • Capacity
  • Tire type
  • Tire size
  • Local ground load (with rated load)
  • Type of energy
  • Weight
  • Turning radius - outside
  • Max. wind speed
  • Wheelbase
  • Ground clearance (stowed)
  • Ground clearance (platform raised)
  • Overall floor load (with rated load)
  • Lifting time (with rated load)
  • Lowering time (with rated load)
  • Driving speed (in stowed position)
  • Driving speed (platform lifted)
  • Maximum number of persons
  • Platform height lifted
  • Stowed height (railings mounted)
  • Stowed Height (Guardrails Down)
  • Platform extension (sliding)
  • Distributed Capacity (Primary Platform)
  • Distributed capacity (platform extension)
  • Certification

This combination does not exist.

Specifications

Brand SKYJACK
Driving at maximum height Hauteur totale
Working height 25' | 7,62 m
Platform height, lowered 0,99 m | 3,25'
Overall Width 0,81 m | 2,66'
Platform width (inside dimension) 0,66 m | 2,17'
Platform length (inside dimension) 1,63 m | 5,35'
Gradeability 30%
Capacity 249 kg | 550 lb
Tire type Solid, N/M
Tire size 12 x  4  x  8"
Local ground load (with rated load) 759 kPa (110 lb/po²)
Type of energy Electric
Weight 1 170 kg (2 580 lb)
Turning radius - outside 1,68 m | 5,51'
Max. wind speed 12,5 m/s (28 mi/h)
Wheelbase 1,40 m | 4,59'
Ground clearance (stowed) 6,03 cm (2,37")
Ground clearance (platform raised) 1,78 cm (0,7")
Overall floor load (with rated load) 10 kPa (201 lb/pi²)
Lifting time (with rated load) 25 s
Lowering time (with rated load) 29 s
Driving speed (in stowed position) 3,2 km/h (2 mi/h)
Driving speed (platform lifted) 1,1 km/h (0,7 mi/h)
Maximum number of persons 2
Platform height lifted 19' | 5,79 m
Stowed height (railings mounted) 1,99 m | 6,53'
Stowed Height (Guardrails Down) 1,64 m | 5,38'
Platform extension (sliding) 3' | 0,91 m
Distributed Capacity (Primary Platform) 136 kg | 300 lb
Distributed capacity (platform extension) 113 kg | 250 lb
Certification CSA
