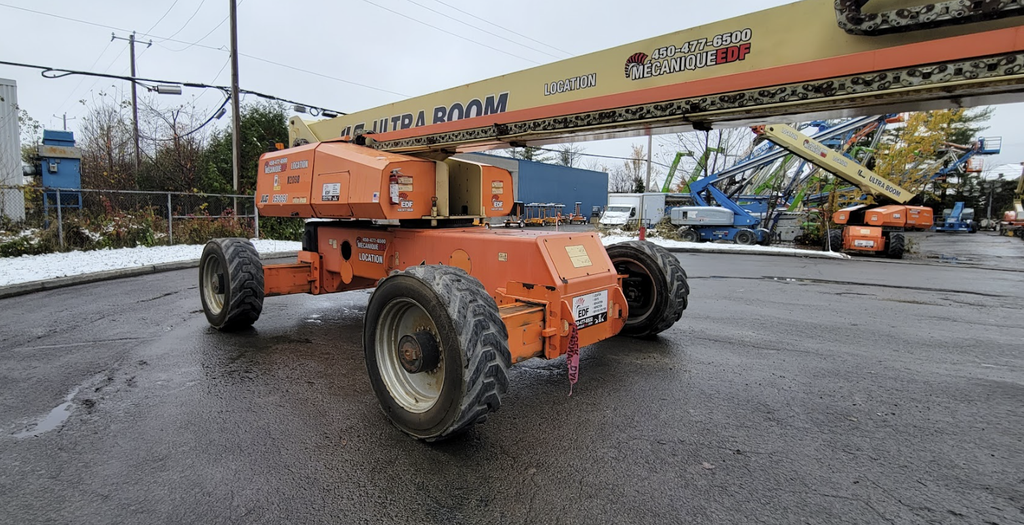

JLG 1500SJ 150' Fuel Boom Lift
- Year 2011
- Hour 6094
- Annual inspection done on March 8, 2023
- Structural made on December 22, 2022
- Structural of December 22, 2027
- Working weight in the basket 500 LBS
- Machine weight 48110 LBS
- CSA certification
1 Day | 3,393.85 $ |
1 Week | 7,673.50 $ |
28 Days | 19,379.45 $ |
Specifications
Type of energy | Diesel |
Fuel tank capacity | 117 L / 30,9 gal, |
Hydraulic tank capacity | 250 L / 66 gal, |
Auxiliary Power unit | 12V DC |
Type of rotation | continuous |
Horizontal offset | 24,38 m / 80' |
Ground clearance | 0,3 m / 1' |
Working height | 47,72 m / 156,6' |
Action scope | 25,03 m / 82,1' |
Platform height | 45,72 m / 150', 45,72 m / 150' |
Platform Capacity – Not limited | 0,23 t | 507 lb |
Machine Height - Folded | 3,05 m / 10' |
Engine type - Diesel - HRC | DEUTZ TCD 2,9L4 Tier 4 Final 74,2 hp |
Engine type - Diesel - LRC | Deutz TD2011L4 55,9 kW 74,9 hp |
Axle oscillation | 0,3 m / 1' |
Drive Speed - 4WD | 4,80 km/h / 3 mph |
Gradeability - 4WD | 40 % |
Machine width | 2,49 m / 8,2' |
Platform length | 2,44 m / 8' |
Counterweight offset | 1,68 m / 5,5' |
Machine weight | 21,77 t | 47999 lb |
Tire size | 445/50D710 Rempli de mousse |
Turntable rotation | 360° |
Arm horizontal rotation | 0° |
Platform Capacity – Limited | 0,45 t | 992 lb |
Internal width | 3,81 m / 12,5' |
Turning Radius - Outside (Axles Extended) | 5,89 m / 19,3' |
Turning Radius - Outside (Axles Retracted) | 6,86 m / 22,5' |
Heights | 13,11 m / 43' |
Certification | CSA |
